Description
The Brightest EDC Flashlight in Your Pocket
Up to 4,000 lumen huge floody beam / Pocket size / Dual Fuel Capability / Versatile and intuitive UI / Magnetic tail-cap /

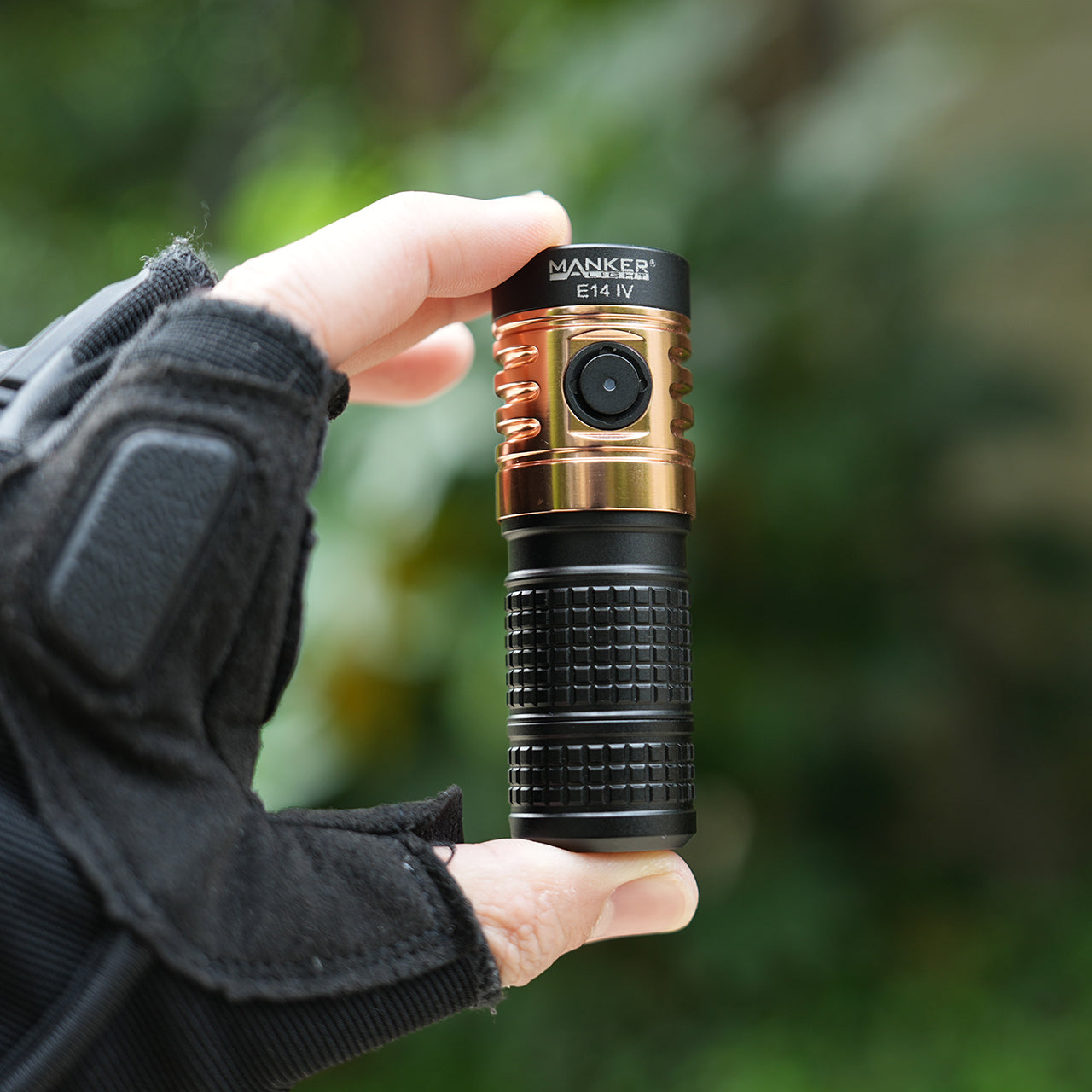

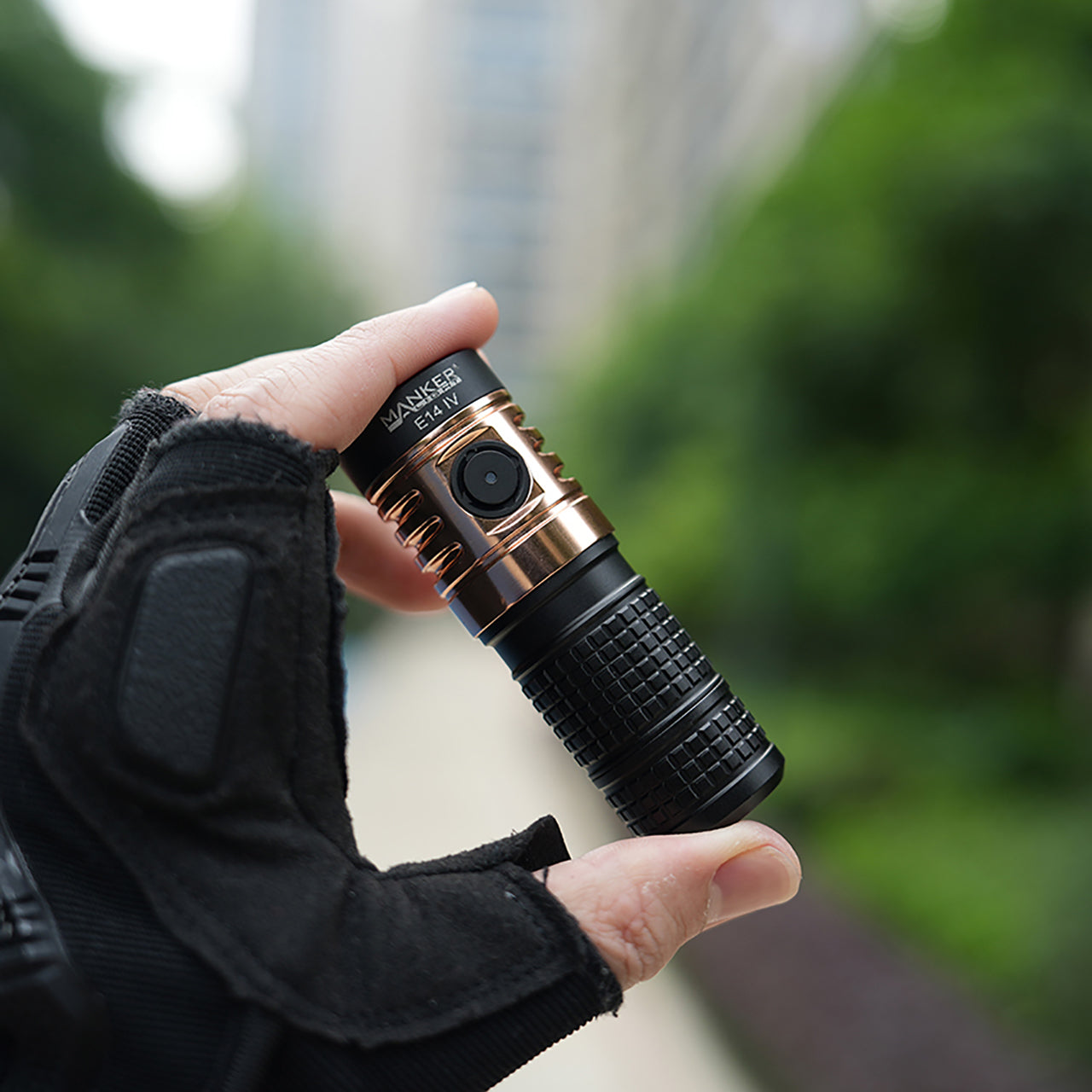

1. Compact and Lightweight but Quad Emitters! Huge Floody Beam - Mankerlight E14 IV has less than 3.23 inch (82 mm) long, 2.43 ounces (69 grams) weight, but utilizes 4 pieces high performance SAMSUNG LH351D LED emitters and integrated precision digital optics technology to offer huge floody beam, maximum 4,000 lumen output.

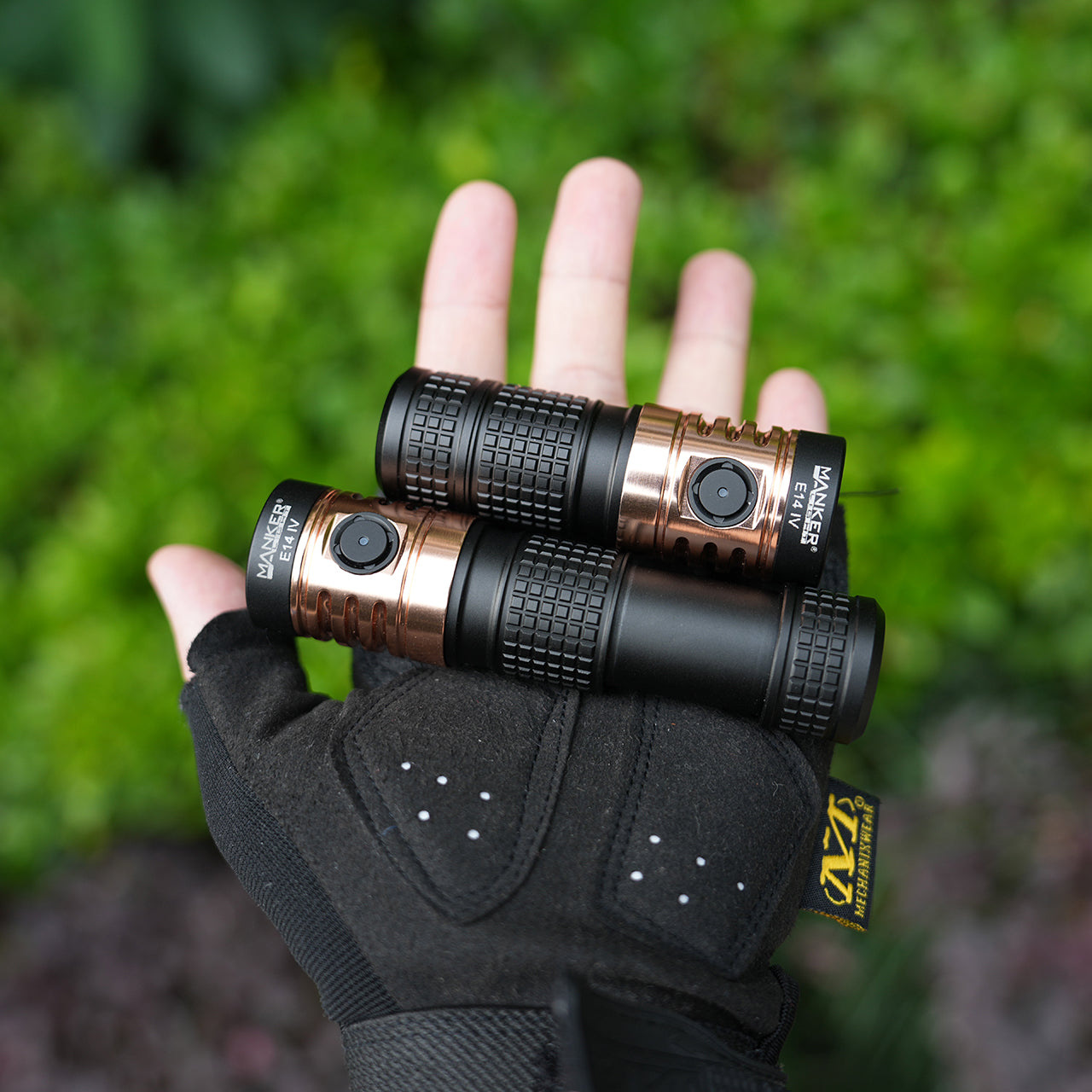

2. Dual Fuel Capability - Accommodate Both an 18350 and 18650 without Swapping the Battery Tube!
3. Durable Construction & Engineering - Aluminum housing with Type III Hard anodized & color anodized finish, IP67 rated, 2 meters underwater. E14 IV adopt high efficient constant current circuit and set temperature regulation 55°C and utilizes the employed thermoelectric separation technology.
4. User-friendly One Button Interface - Compare with other lights in the market, E14 IV have versatile and intuitive user interface. Single click to turn OFF/ON. double click to Turbo, triple click to Strobe, from OFF, quadruple click to lock-out...memory function stores the general mode last used (Low or Medium or High).
5. Program Moonlight brightness in hidden engineering mode - Flashaholics love this feature. We pre-set 1 lumens at moonlight level for ordinary end users. If you are flashaholics and want to set ultra-low brightness such as 0.01 lm or higher brightness at ECO mode, you can program it in hidden engineering mode. (after purchase, you can contact us to get a tutorial video)

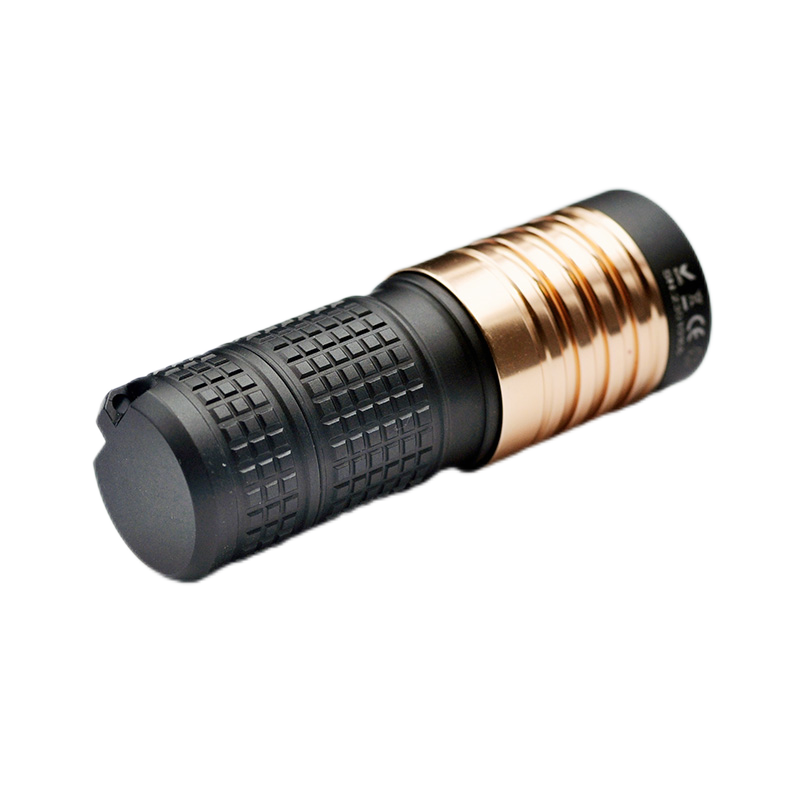

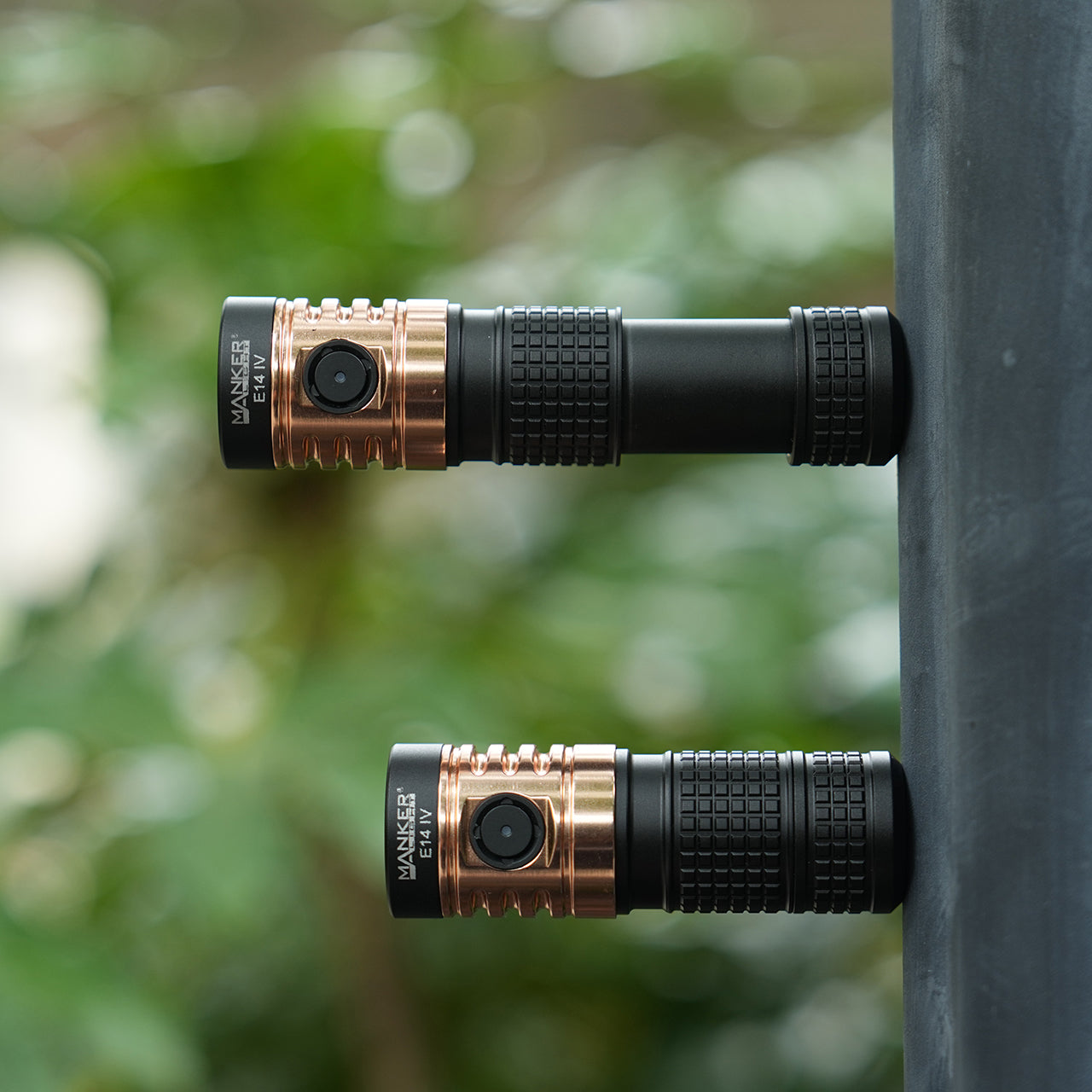

6. Hands-Free Operation - With a magnet tail-cap, E14 IV can attach to metal surfaces for hands-free use during activities.
7. Type-C USB 18350 Battery Included - The package included one piece Mankerlight 1100mAh high discharge 18350 rechargeable li-ion battery, built-in Type-C USB charging port and have max. 15 Amp continuous discharge current, support maximum fast 3 Amp charging, support C to C charging /PD charger

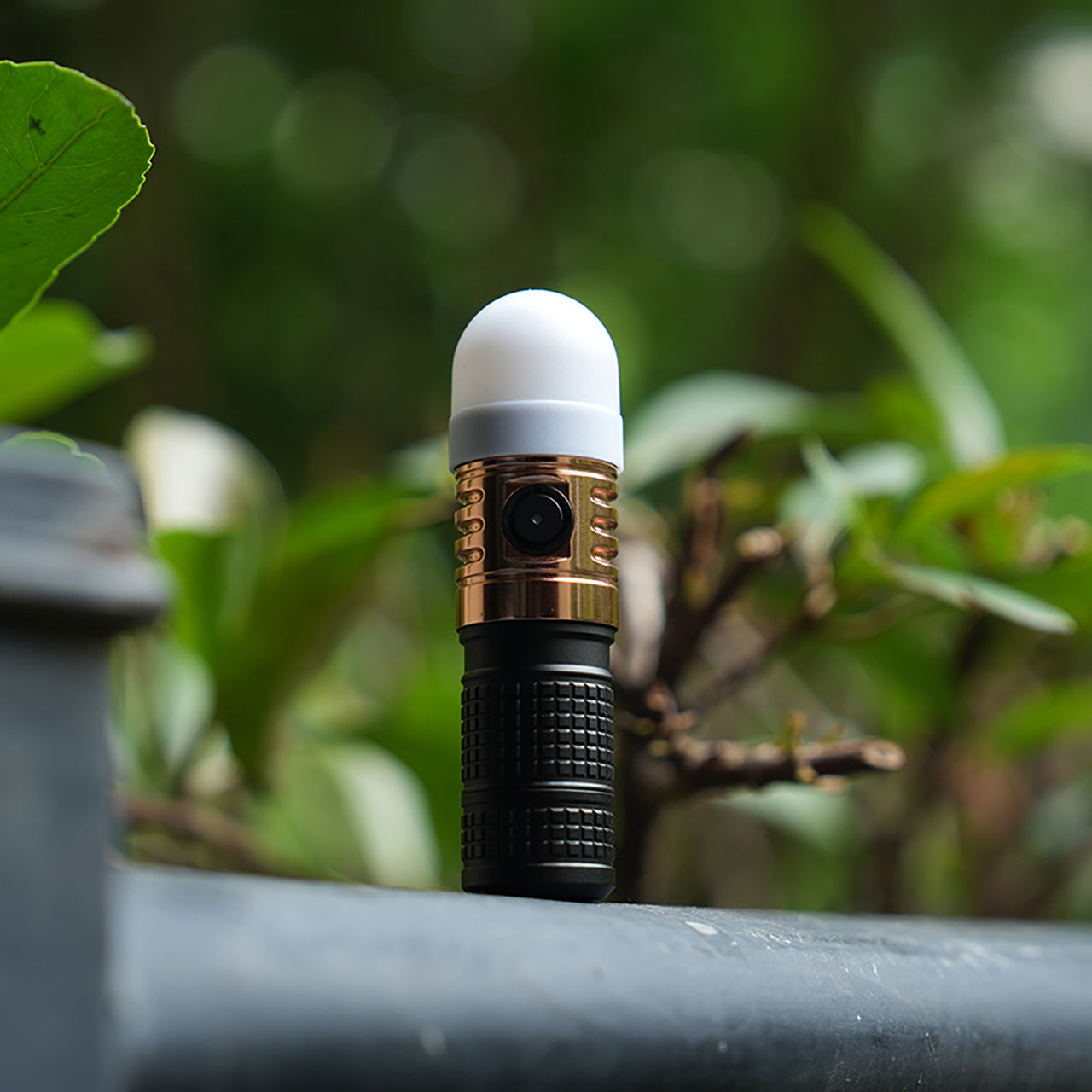

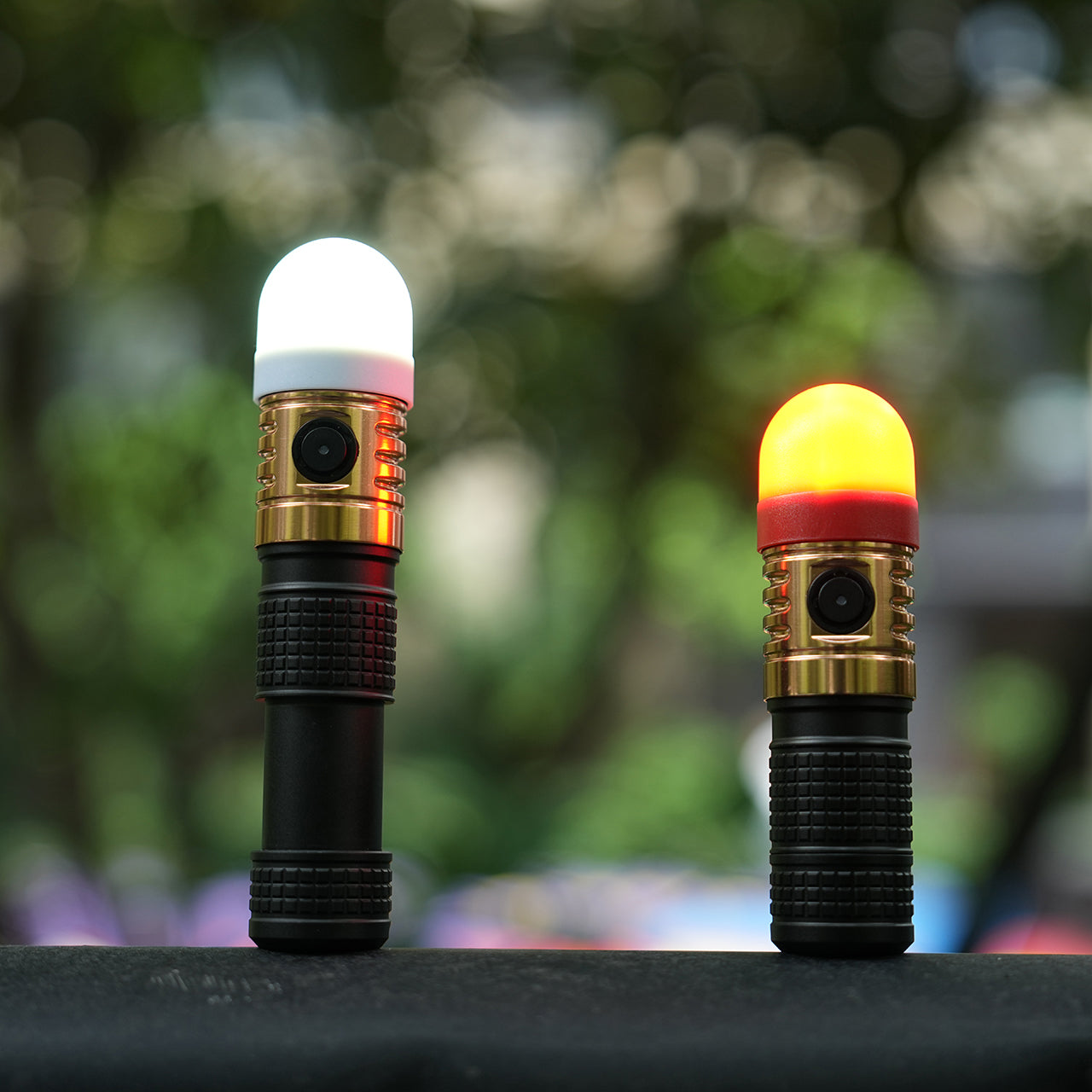

8. White Filter Included - White filter makes E14 IV's floody beam more gentle. it is suitable for close distance lighting and the uniform beam distribution is very suitable for area lighting.

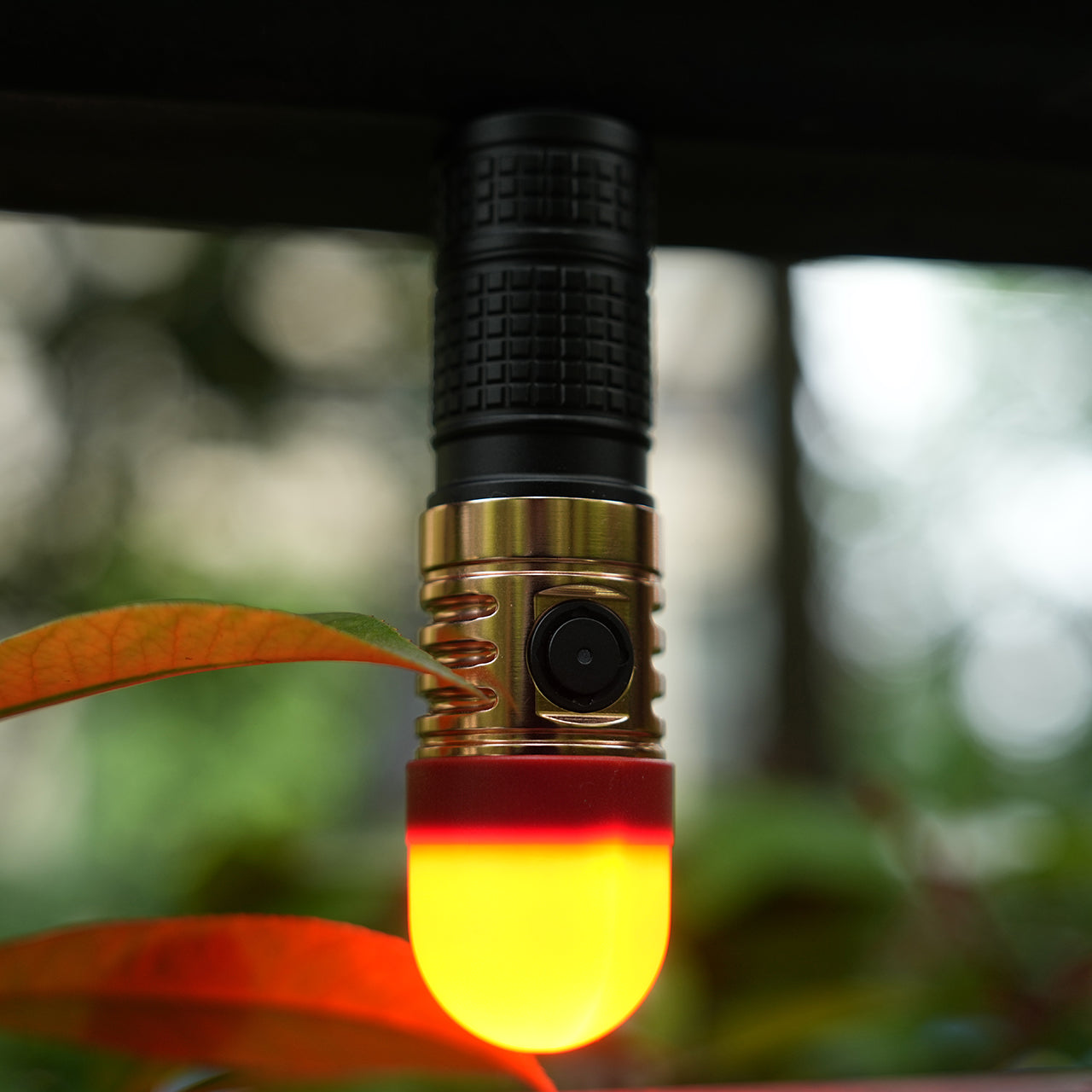

9. Red Filter is Optional - Red filter + Strobe/SOS/beacon used for emergencies, caution, traffic signal.
Specifications
• Light source: 4x SAMSUNG LH351D LED

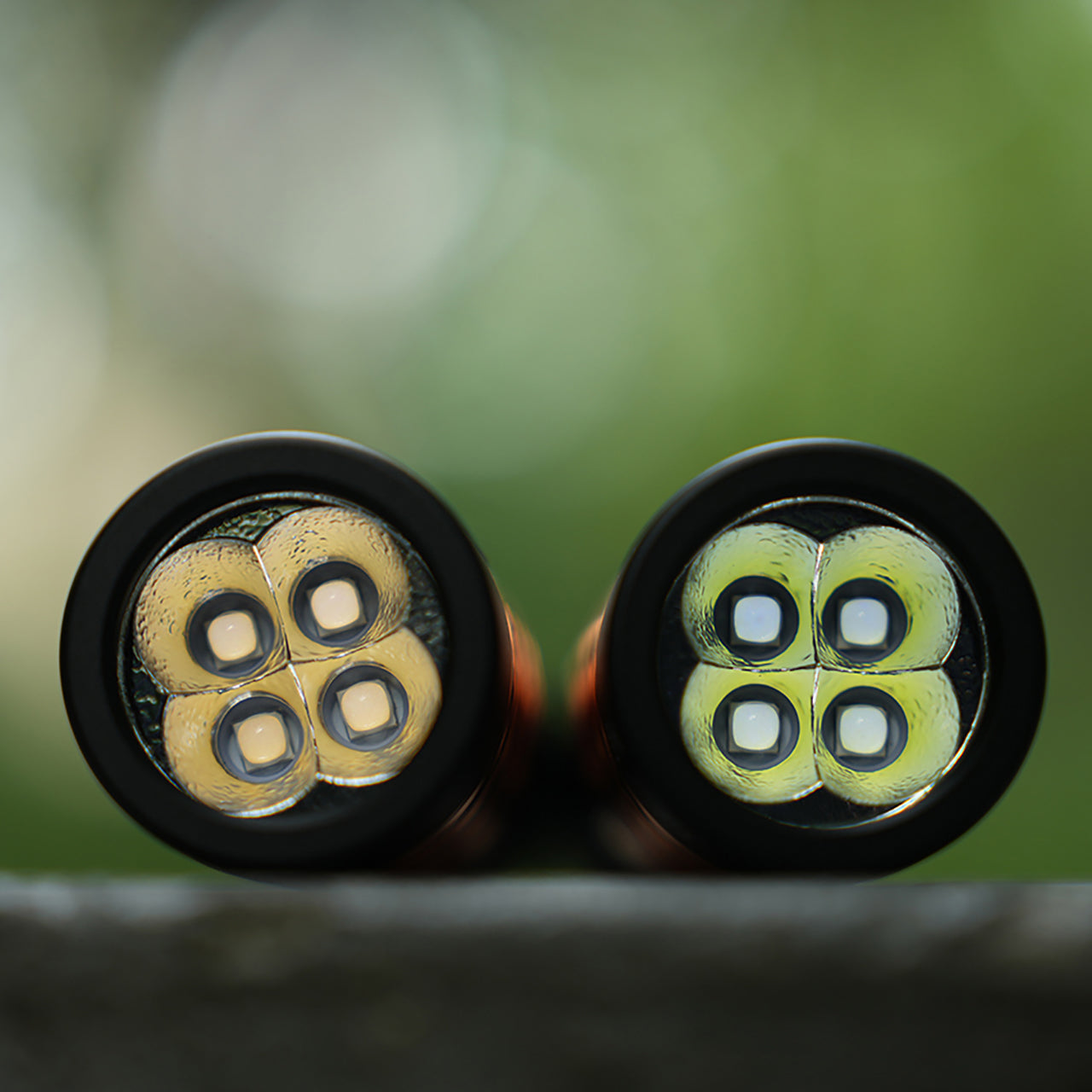

• Light Color: Cool white 6500K /Neutral White 4000K CRI >90
• Battery: 1x 18350 / 1x 18650
Cool White version:
Powered by 1x Mankerlight 1100mAh 18350 li-ion battery
Moonlight: 1 lumen / 48 hours
Ultra Low 1: 80 lumen / 41 hours
Ultra Low 2: 130 lumen / 25 hours
Low: 180 lumen / 5 hours 57 minutes
Medium: 740 lumen / 1 hours 22 minutes
High: 1,100 lumen / 1 hours 5 minutes
Turbo: 3,300 lumen(will step-down) / 52 minutes
Strobe/beacon/SOS: 3,300 lumen
Cool White version:
Powered by 1x Mankerlight 3100mAh 18650 li-ion battery
Moonlight: 2 lumen / 158 hours
Ultra Low 1: 100 lumen / 122 hours
Ultra Low 2: 150 lumen / 81 hours
Low: 200 lumen / 16 hours 57 minutes
Medium: 750 lumen / 3 hours 15 minutes
High: 1,200 lumen / 2 hours 27 minutes
Turbo: 4,000 lumen(will step-down) / 2 hours 7 minutes
Strobe/beacon/SOS: 4,000 lumen
• Max peak beam intensity of 6,889 Candela
• Max Beam Distance: 166 meters
Neutral White version:
Powered by 1x Mankerlight 1100mAh 18350 li-ion battery
Moonlight: 0.1 lumen / 50 hours
Ultra Low 1: 20 lumen / 45 hours
Ultra Low 2: 55 lumen / 27 hours
Low: 90 lumen / 6 hours
Medium: 460 lumen / 1 hours 25 minutes
High: 750 lumen / 1 hours 8 minutes
Turbo: 2,100 lumen(will step-down) / 55 minutes
Strobe/beacon/SOS: 2,100 lumen
Neutral White version:
Powered by 1x Mankerlight 3100mAh 18350 li-ion battery
Moonlight: 0.1 lumen / 160 hours
Ultra Low 1: 25 lumen / 125 hours
Ultra Low 2: 60 lumen / 83 hours
Low: 90 lumen / 17 hours
Medium: 470 lumen / 3 hours 20 minutes
High: 800 lumen / 2 hours 30 minutes
Turbo: 2,800 lumen(will step-down) / 2 hours 10 minutes
Strobe/beacon/SOS: 2,800 lumen
• Max peak beam intensity of 3,969 Candela
• Max Beam Distance: 126 meters
• Working Voltage: 2.8 V - 4.4 V
• Driver: High Efficiency Constant Current Circuit (Non-PWM)
• Thermal Regulation: up to 55°C step-down
• Lower Voltage Indicator:
- Battery voltage <2.9 V, flashlight downshifts to low level.
- Battery voltage =2.8 V, flashlight turn off automatically
• Battery Voltage Indicator:
- Battery voltage >3.4 V, blue light turn on and last 10 seconds
- Battery voltage 3.4 V - 3.2 V, purple light turn on and last 10 seconds
- Battery voltage 3.2 V - 2.8 V, red light constant-on
- Battery voltage < 2.8 V, flashlight turn off automatically
• Battery Charging Indicator:
- Battery is charging = red light constant-on,
- Battery is full charged = green light constant-on
• User Interface:
• Body Material/Finish: Aerospace Aluminum Alloy with HA III hard anodizing +color anodizing
• Button Material: Aerospace Aluminum Alloy with black plated
• Contact Spring Retainer Material: Phosphore Bronze / Gold Plated
• Lens: Dual-sided AR coated, 99% transmittance toughened Glass
• Optic: 4 in 1 customized micro orange peel aluminum reflector with vacuum plated (By CNC machining)
• Lanyard hole: 0.1" / 2.5 mm (inner diameter)
• Size: 82 (Length) x 28 (Head diameter) x 25.9 (Tail diameter) mm;
111.3(length) x 28 (Head diameter) x 25.9 (Tail diameter) mm
• Weight: 69 gram or 2.43 oz (With Battery)
• Impact Resistance: 1 meters
• Water Resistance: IP67, 2 m underwater for 30 minutes

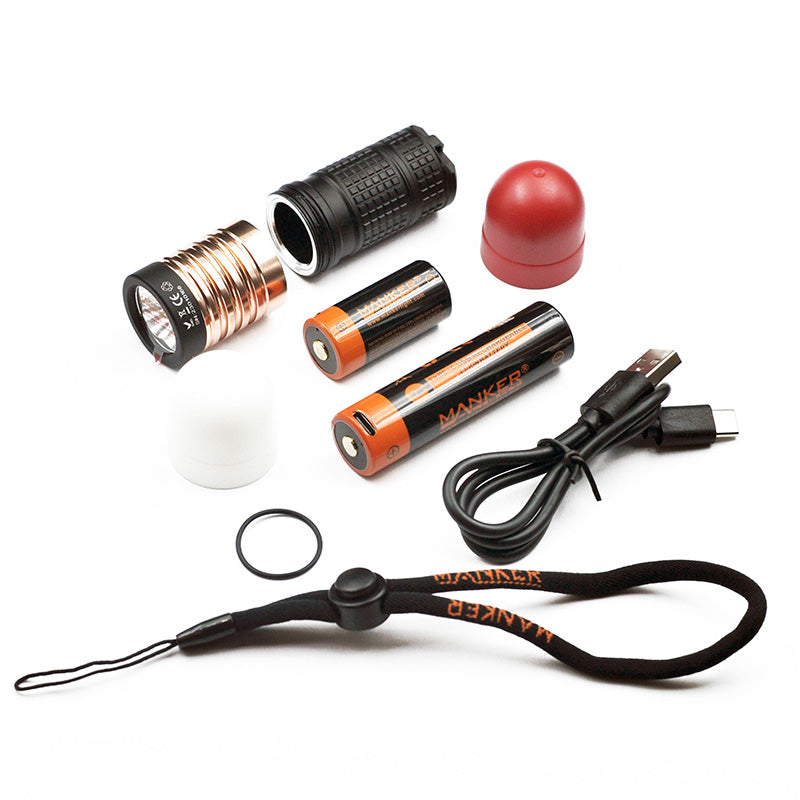

Package content
1x Mankerlight E14 IV Flood LED flashlight
1x Mankerlight 1100mAh Type-C USB rechargeable high drain protected 18350 li-ion battery (new version)
1x Type-C USB charging cable
1x White filter
1x Lanyard
1x Spare O-ring
1x User manual
Warnings:
Do not shine light directly at anyone eyes.
Please keep the product away from children.
Please remove insulation sheet of battery and fully charge battery before initial use.
Please check and replace the O-ring regularly to maintain the waterproof rating.
Please check and lubricate the threads regularly with professional lubricant.
Remove the battery from the flashlight during long term storage.
Please recharge the battery every 2 months when left unused for a prolonged time.
