Description

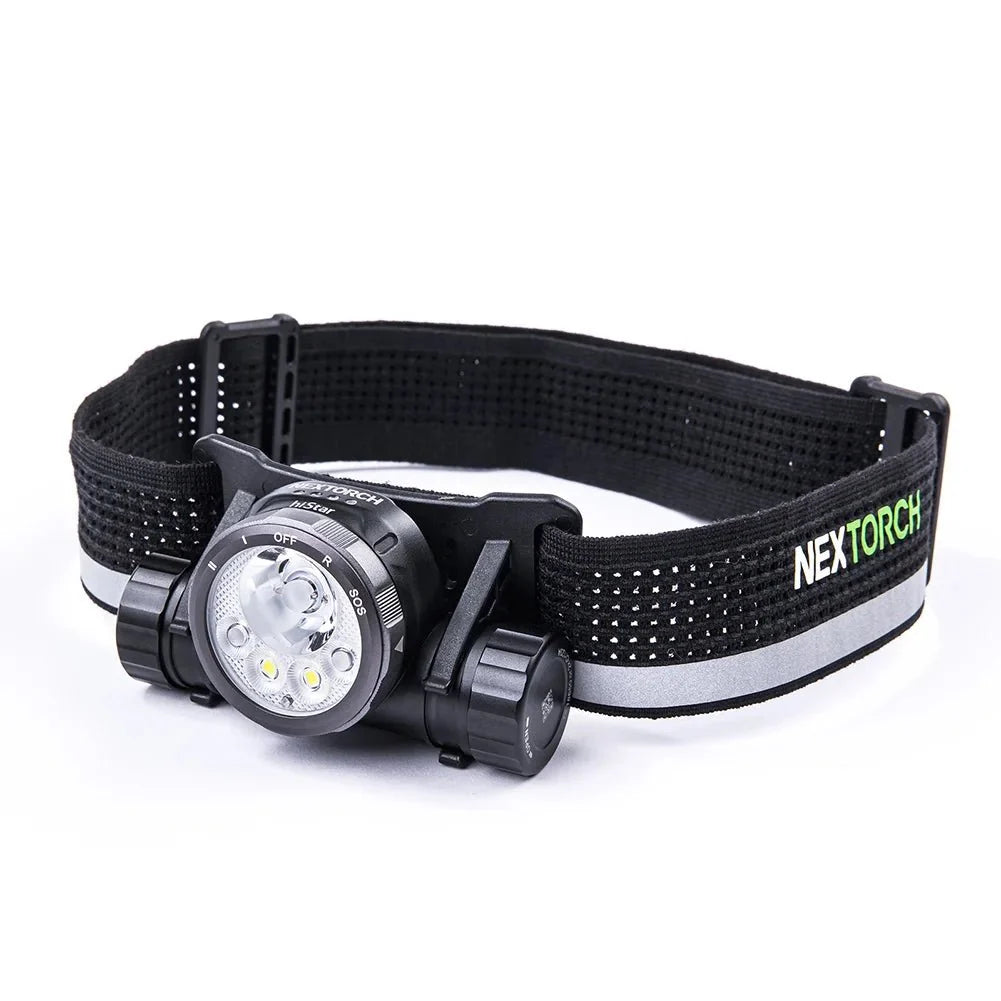

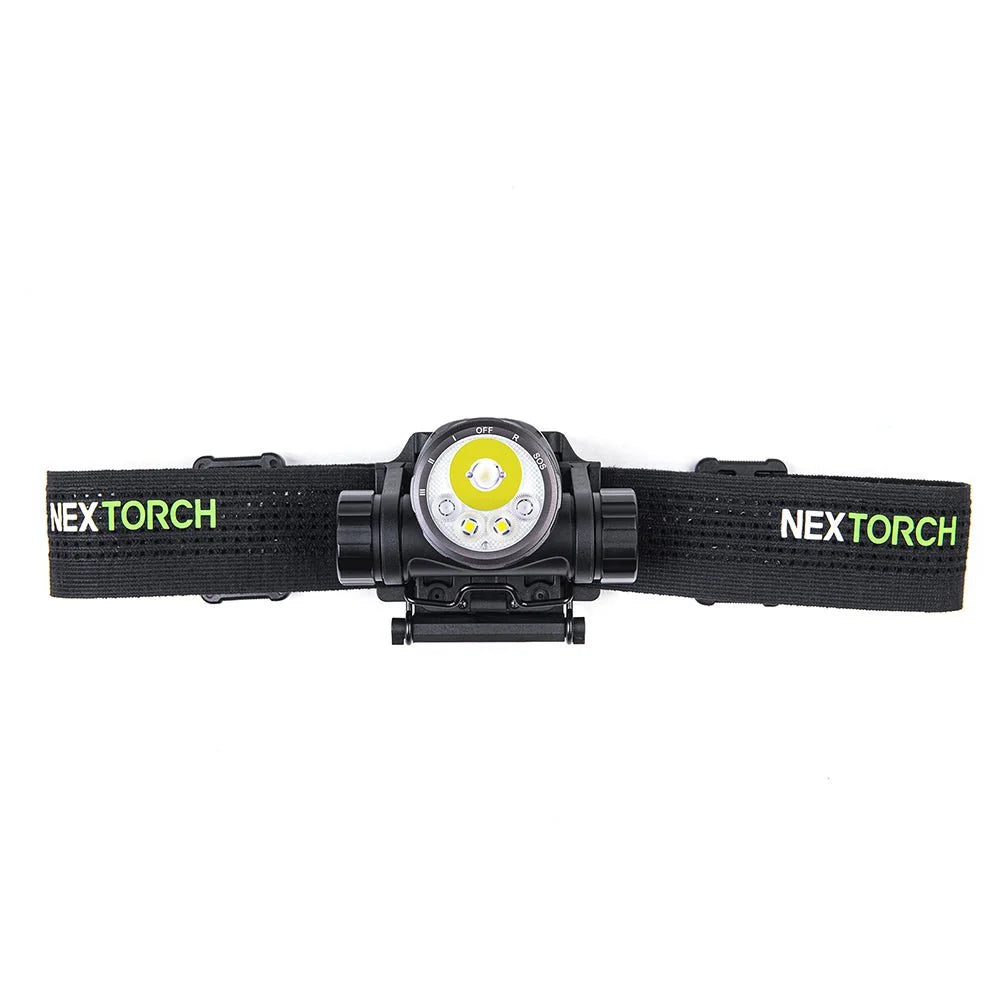

Unleash high-output illumination with the NEXTORCH hiStar Rechargeable Headlamp. Pumping out an intense 2,300 lumens with a 256-meter throw, it features patented Claw Optics™ combining spot and flood beams alongside dedicated red light. Crafted from ultra-lightweight magnesium alloy weighing just 96g, it offers glove-friendly dual rotary dials, stepless dimming, USB-C dual-fuel versatility, and IP67 waterproof durability for demanding tactical and outdoor missions.
| Parameter | Specification |
| Model | NEXTORCH hiStar Modular High-Performance Rechargeable Headlamp |
| Max Output & Optics | 2,300 Lumens (Patented Claw Optics™ combining a 12° Spotlight and 100° Wide Floodlight) |
| Max Beam Distance & Intensity | 256 Meters (840 ft) / 16,384 cd Peak Beam Intensity |
| Light Sources & Modes |
Dual White & Auxiliary Red LEDs with Stepless Dimming:
• Spot & Flood Combo: 2,300 ~ 20 lm (2h 15m – 95h)
• Spotlight: 1,100 ~ 10 lm (4h – 180h)
• Floodlight: 1,100 ~ 10 lm (4h – 180h)
• Red Light / SOS: 55 ~ 3 lm (10h – 220h max runtime)
|
| Battery Compatibility | 1 × 18650 Rechargeable Li-ion (3,400 mAh USB-C direct-charging included) / 2 × CR123A (Cold-resistant backup) |
| Switch & Control UI | Glove-Friendly Dual-Rotator System (Independent Mode Ring for White/Red/SOS + Stepless Dimming Dial with Smart Memory Lock) |
| Modular Versatility | Quick-Release Mounting System (Converts between Headlamp, Ballistic Helmet Light, Hardhat Light, and Handheld Work Light; NVG & ARC rail compatible) |
| Dimensions & Weight | 82 mm (L) × 46 mm (W) × 35 mm (H) / 96 g (3.39 oz, without battery) / 147 g (5.19 oz, with battery & headband) |
| Material & Durability | Aerospace-Grade Magnesium Alloy with Gen 3 U.T.B. Active Thermal Buffering / IP67 Dust & Waterproof, 1 m Impact Resistance |
Features
-
Extreme 2300lm All-in-One Illumination
Fuses a piercing 2,300-lumen output and 256m distance via patented Claw Optics™. Seamlessly switch between white and night-vision red lights, delivering versatile multi-mode adaptability and an ultra-long 220-hour maximum runtime. -
Magnesium Alloy Ultra-Light Airframe
Crafted from premium aerospace-grade magnesium alloy. It delivers aluminum-level ruggedness at 1/3 less weight, weighing just 96g to eliminate neck fatigue during extended tactical or outdoor missions. -
Patented Claw Optics™ Dual-Beam
Empowered by NEXTORCH’s proprietary optical system. It fuses a tight spotlight and a 100° smooth floodlight into a seamless, high-efficiency hybrid beam—delivering a piercing 2,300 lumens and 256-meter throw. -
Tactical Glove-Friendly Dual Rotators
Designed for zero-sight, absolute blind operation. An independent Mode Ring allows instant switching between White/Red/SOS modes, while the Stepless Dimming Dial offers smooth brightness tailoring with a smart memory lock. -

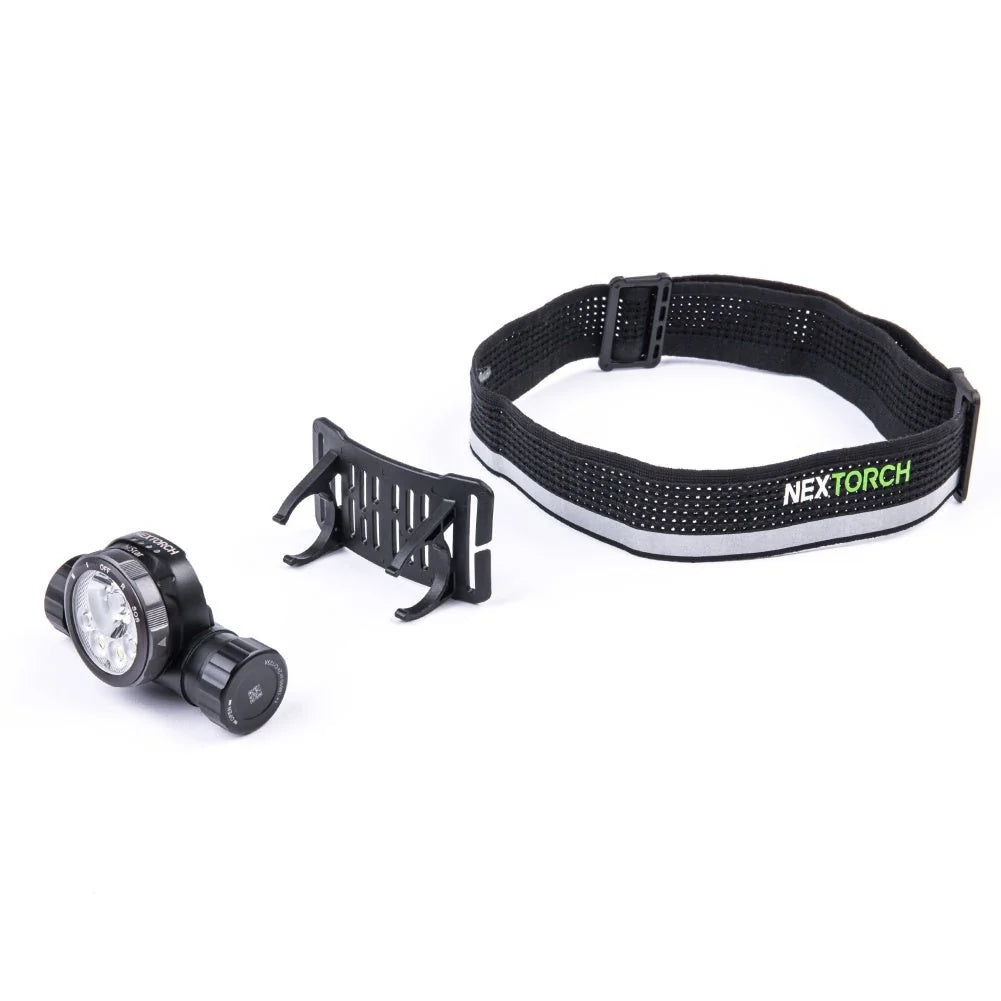

The Ultimate Modular Multi-Tasker
More than just a headlamp. Engineered with a quick-release mechanism to effortlessly transform into a ballistic helmet light, industrial hardhat light, or a standalone tactical work light (compatible with specialized NVG and ARC rail mounts). -
True All-Weather Resilience (IP67)
Built to survive the harshest environments. Featuring IP67 dust and waterproof protection, 1-meter impact resistance, and a Dual-Fuel power system (Type-C 18650 or cold-resistant CR123A batteries) for guaranteed ignition in any climate.
| ANSI / PLATO-FL1 | Spot & Flood Light | Spotlight | Floodlight | Red Light | SOS |
|---|---|---|---|---|---|
| Light Output | 2300 ~ 20 lm | 1100 ~ 10 lm | 1100 ~ 10 lm | 55 ~ 3 lm | 55 ~ 3 lm |
| Run Time | 2h 15min ~ 95h | 4h ~ 180h | 4h ~ 180h | 10h ~ 220h | — |
| Beam Distance | 256 ~ 24 m | 250 ~ 23 m | 55 ~ 4 m | — | — |
| Beam Intensity | 16384 ~ 144 cd | 15625 ~ 132 cd | 756 ~ 4 cd | — | — |
| Impact Resistance | 1 m | ||||
| Waterproof | IP67 | ||||
| Weight & Dimensions |
Weight: 96 g / 3.3 oz (Without Battery), 147 g / 5.19 oz (With Battery and Headband) Size: 82 mm (Length) × 46 mm (Width) × 35 mm (Height) |
||||
| Material |
Light Source: White / Red Light LEDs Body Material: Magnesium Alloy |
||||
| Battery | One 3400mAh or two CR123A | ||||
